What Are Spring Tolerances, Anyway?

In simple terms, tolerance is the wiggle room we allow when manufacturing springs. It’s the range of acceptable variation in the spring’s dimensions or physical properties. Imagine you’re baking cookies, and you want each cookie to be about 2 inches in diameter. You’re okay if some cookies are a tiny bit bigger or smaller—say, between 1.99 and 2.01 inches. That range is your tolerance. Similarly, in the world of springs, tolerances ensure that even with minor variations in production, the spring will still work as intended. These variations can occur due to slight differences in material properties, the manufacturing process, or even environmental conditions during production. Understanding and controlling these tolerances is crucial for maintaining the quality and functionality of the springs.

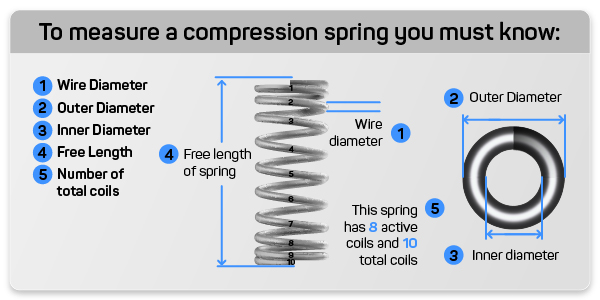

For springs, tolerance could apply to things like the outer diameter, wire diameter, free length, and how much load they can handle. Each of these dimensions plays a role in how the spring will behave in its application. For example, if a spring’s free length, like in part number AC050-500-6000-MW-1000-C-N-IN, is supposed to be 1 inches, a tolerance of ±0.025 inches means the actual length could be anywhere between 0.975 and 1.025 inches, and it’s still good to go. This range ensures that the spring will fit into its designated space and perform as expected without causing any issues in the assembly or function of the product. It’s a delicate balance—too tight a tolerance can increase production costs and complexity, while too loose a tolerance might compromise the spring’s performance.

Why Precision Matters

You might be thinking, “Does a few thousandths of an inch really make a difference?” The short answer: absolutely. Precision in spring manufacturing is not just about meeting a specification; it’s about ensuring that the spring performs its job perfectly, every time. Even a small deviation can lead to significant issues down the line, especially in applications where the spring is part of a critical system.

1. Fit and Assembly: Springs must fit precisely within the assemblies they are designed for. If it’s too big, it won’t fit; if it’s too small, it might shift around and not work as intended. That’s why getting those dimensions within a tight range is so important. Think about the springs in your mechanical keyboard—they need to fit precisely within the assembly to provide the correct tactile feedback. If the springs were even slightly off in size, it could lead to poor key response, increased wear on other components, and ultimately, a less reliable keyboard. The same applies to tiny springs in electronic devices, where space is limited, and components must fit together perfectly to function.

2. Performance: The way a spring performs—how much force it can take, how it bounces back—depends a lot on its dimensions. If the wire is just a bit thicker or thinner than planned, it could totally change how the spring behaves. For example, a thicker wire might make the spring stiffer, increasing its load-bearing capacity but reducing its flexibility. On the other hand, a thinner wire could make the spring too flexible, potentially leading to failure under load. These variations can affect everything from the feel of a button click to the reliability of a precision instrument. Ensuring that the spring meets its tolerance specifications is crucial for maintaining consistent performance across all units.

3. Interchangeability: In industries like electronics or medical devices, parts need to be interchangeable. Tight tolerances mean you can swap out parts without worrying about whether they’ll fit and work the same way as the original. This interchangeability is critical for maintenance and repair processes, where downtime needs to be minimized. Imagine having to custom-fit each replacement spring in a piece of medical equipment—this would not only be time-consuming, but also increase the risk of errors. Tolerances ensure that every spring produced to a specific design can be used as a direct replacement, maintaining the integrity of the system and reducing costs.

4. Cost Efficiency: Sure, keeping tolerances tight but not too stringent might cost a bit more upfront. But it also means fewer defects, less rework, and ultimately, cost savings in the long run. Producing springs with consistent quality reduces the likelihood of returns or warranty claims, which can be costly for manufacturers. Additionally, it streamlines production processes, as there’s less need for adjustments or corrections during assembly. In high-volume production, even small savings in time and materials can add up to significant cost reductions. Moreover, reliable springs enhance the overall reputation of a product, leading to increased customer satisfaction and repeat business.

5. Safety and Reliability: In critical applications—think medical devices or safety equipment—there’s no room for error. Springs need to perform flawlessly, and that’s where precise tolerances come in. For instance, in a medical device, a spring’s performance can directly impact a patient’s safety. If the spring does not meet its tolerance specifications, it could fail, leading to potentially life-threatening situations. Similarly, in precision instruments used in scientific research, the springs must function correctly to ensure accurate results. Precise tolerances ensure that these springs will activate at the right moment and provide the necessary force, making them a vital component in safeguarding lives.

Factors That Affect Spring Tolerances

So what affects how tight (or loose) these tolerances can be? A few things:

1. Material: Different materials have different properties. The main culprit of spring dimensional variation in any spring is the variation in the spring wire materials density, meaning the variation in the tensile strength fluctuation in a coil of spring wire. The  coil of spring wire has harder and softer parts in it that make the spring dimensions vary when manufactured. In fact the spring technician has to readjust the CNC coiling machine because of these variations in tensile strength in the coil of wire that is used to produce the spring. This variation in spring wire density is what causes the spring to fluctuate its dimensions while being fabricated. There are harder and softer spots within the coils of wire that's used to make the spring, therefore the springs dimension will vary when manufactured. Stainless steel, for example, might let you achieve tighter tolerances as well as music wire because it’s less prone to deforming. The choice of material affects not only the spring’s performance but also its manufacturability. Stainless steel is known for its durability and resistance to corrosion, making it ideal for applications where the spring is exposed to harsh environments. However, achieving tight tolerances with stainless steel may require more advanced manufacturing techniques, which can increase costs. On the other hand, music wire, while highly versatile and widely used, may be more susceptible to slight variations during the manufacturing process, leading to looser tolerances.

2. Manufacturing Process: The way a spring is made—whether it’s coiled by hand or on a high-tech CNC Coiling machine—affects how precise the dimensions can be. Advanced manufacturing processes, such as CNC coiling, allow for extremely tight control over the spring’s dimensions, resulting in more consistent and precise tolerances. These machines can produce springs with minimal variation from one unit to the next, making them ideal for high-precision applications. Conversely, manual processes or older equipment may introduce more variability, leading to looser tolerances. The level of automation and the quality of the machinery used directly impact the achievable tolerances and the overall quality of the springs.

3. Design Specs: The application of the spring often dictates the tolerance. Springs in a high-precision device like a watch need much tighter tolerances than those in a less critical application. In a watch, even a tiny deviation in a spring’s dimensions can affect the accuracy of the timepiece. Similarly, springs used in aerospace applications must meet extremely tight tolerances to ensure they perform reliably under the demanding conditions of flight. On the other hand, a spring used in a less critical application, like a toy, might have looser tolerances because the consequences of slight variations are less severe. The design specifications are tailored to the specific needs of the application, balancing performance, cost, and reliability.

4. Environment: The conditions where the spring will be used—temperature, humidity, exposure to chemicals—can affect its dimensions over time. Tolerances help account for these factors. For example, springs used in outdoor or high-temperature environments may expand or contract due to changes in temperature. Tolerances are set to ensure that the spring will continue to function correctly despite these changes. Additionally, exposure to corrosive chemicals or moisture can lead to material degradation, affecting the spring’s dimensions and performance. By considering the operating environment when setting tolerances, manufacturers can ensure that the spring remains reliable throughout its service life.

5. Quality Control: Ensuring springs meet their tolerances requires rigorous testing and quality checks. It’s not just about making sure the dimensions are right, but also that the spring performs as expected in real-life conditions. Quality control processes include both in-process inspections during manufacturing and final inspections before the springs are shipped to customers. These checks involve measuring the spring’s dimensions with precision instruments, testing its load capacity, and simulating its operating conditions to verify performance. Quality control is essential for catching any deviations from tolerance early in the process, reducing the risk of defective springs reaching the customer and ensuring consistent product quality.

How to Calculate Tolerances: Real-Life Examples

To illustrate the importance of tolerances in spring manufacturing, we'll use part number AC050-500-6000-MW-1000-C-N-IN as our reference. By sticking with this part number throughout our discussion, we can keep things clear and consistent as we delve into this essential concept and its practical application. This approach will help us understand how tolerances directly impact the performance, fit, and reliability of springs in real-world scenarios.:

Example 1: Compression Spring Outer Diameter Tolerance

Part number AC050-500-6000-MW-1000-C-N-IN is a compression spring with an outer diameter (OD) of 0.5 inches and the tolerance is ±0.008 inches. This means that the spring's OD can vary slightly during manufacturing, but as long as it stays within the range of 0.492 to 0.508 inches, it will still fit and function as required.

• The smallest it could be is:

  • 0.5 inches − 0.008 inches = 0.492 inches

• The largest it could be is:

  • 0.5 inches + 0.008 inches = 0.508 inches

This range ensures that the spring can be used in its intended application without any issues related to fit or performance. For instance, if this spring is part of a larger assembly, such as a precision instrument, it needs to fit within a specific space. If the OD is too large, it won’t fit; if it’s too small, it might move around, leading to potential malfunction. By calculating and maintaining these tolerances, manufacturers can ensure that every spring produced meets the required specifications and will function correctly in its intended application.

Example 2: Wire Diameter Tolerance

Say the spring’s wire diameter is 0.050 inches, like in part number AC050-500-6000-MW-1000-C-N-IN, and the tolerance is ±0.001 inches. The wire diameter directly affects the spring's strength and flexibility, so maintaining tight control over this dimension is critical.

• The minimum wire diameter:

  • 0.050 inches − 0.001 inches = 0.049 inches

• The maximum wire diameter:

  • 0.050 inches + 0.001 inches = 0.051 inches

This range might seem tiny, but even a small variation can significantly impact the spring’s performance. If the wire is too thin, the spring might not be strong enough to handle the required load, leading to failure. If the wire is too thick, the spring might be too stiff, affecting the overall operation of the device it’s used in. For example, in an electronic switch, the feel and response of the button could be affected, leading to a poor user experience. By controlling the wire diameter within this tolerance, manufacturers can ensure that the spring meets its design specifications and performs reliably.

Example 3: Free Length Tolerance

If you’ve got part number AC050-500-6000-MW-1000-C-N-IN, a spring designed with a free length of 1 inches and a tolerance of ±0.025 inches, this means that the spring’s length when it’s not under any load can vary slightly, but still be within the acceptable range.

• The shortest it could be:

  • 1.0 inches − 0.025 inches = 0.975 inches

• The longest it could be:

  • 1.0 inches + 0.025 inches = 1.025 inches

The free length of part number AC050-500-6000-MW-1000-C-N-IN can range from 0.975 to 1.025 inches, ensuring that it will still function correctly in its application. The free length is important because it determines how much the spring can be compressed or extended before it reaches its limits. In a precision instrument, for example, the free length determines how much movement the spring has, affecting the device’s accuracy and functionality. By calculating and maintaining this tolerance, manufacturers can ensure that the spring will perform as expected under various conditions, providing consistent and reliable operation.

Example 4: Load Tolerance

Part number AC050-500-6000-MW-1000-C-N-IN was designed to support a maximum load of 13.500 lbf pounds of force plus or minus ten percent of tolerance. If the tolerance is ±1.350 lbf, this means the spring can handle a load within a certain range without compromising its performance.

• The lowest acceptable maximum load:

  • 13.500 lbf − 1.350 lbf = 12.15 lbf

• The highest acceptable maximum load:

  • 13.500 lbf + 1.350 lbf = 14.850 lbf

So, the spring should handle a load between 12.15 and 14.850 lbf. Maintaining this maximum load tolerance is crucial in applications where the spring’s performance is critical to the overall function of the device. For example, in a precision scale, the spring’s ability to handle the specified load ensures that the measurements are accurate and consistent. By calculating and controlling the load tolerance, manufacturers can ensure that the spring will perform reliably and accurately in its intended application.

Tools to Help You Hit the Mark: Acxess Spring’s Solutions

Here at Acxess Spring, we know how important it is to get these details right. That’s why we offer a bunch of tools and services to help ensure your springs meet all the required tolerances. We understand that precision is key to producing high-quality springs that perform reliably in any application. That’s why we’ve developed advanced tools and resources to help you design, test, and manufacture springs with the tightest tolerances.

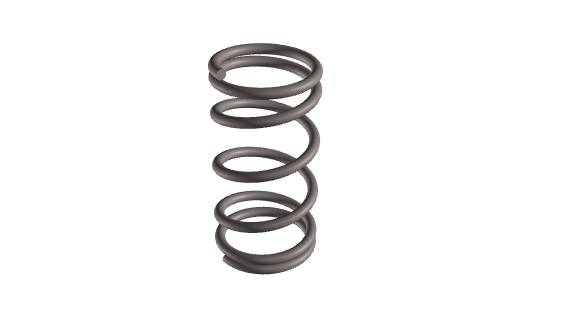

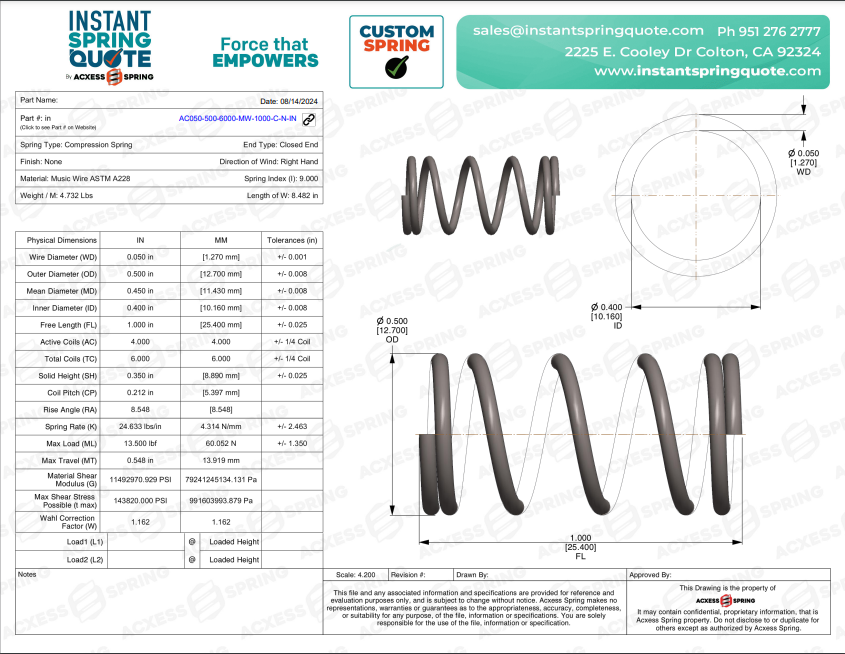

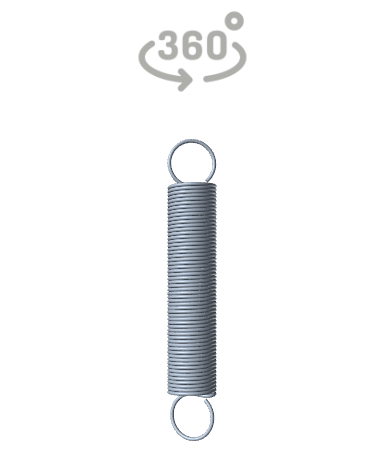

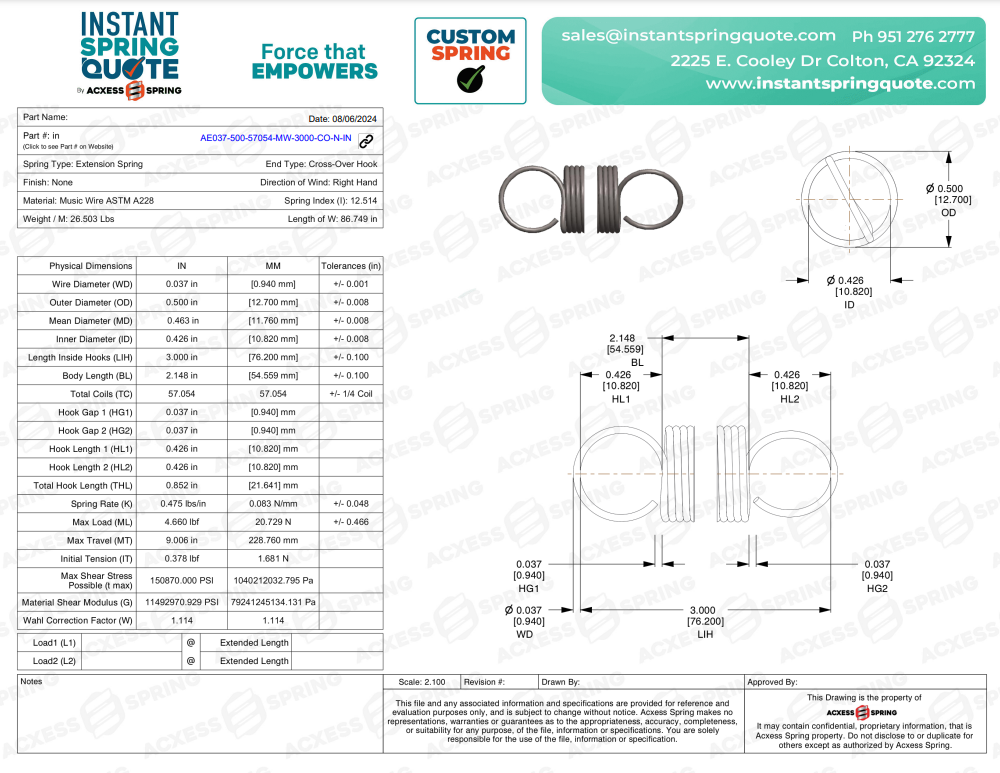

1. 3D CAD Models and Blueprints: These allow you to visualize your spring design before it goes into production. With our 3D CAD tools, you can create detailed models of your springs, allowing you to see how they’ll fit into your assembly and perform under different conditions. You can make adjustments to the design before any material is cut, ensuring that the final product meets all your specifications. This proactive approach not only saves time and resources but also reduces the likelihood of errors during manufacturing. By using 3D blueprints, you can communicate your design intentions clearly with our manufacturing team, ensuring that the springs are produced exactly as you envisioned.

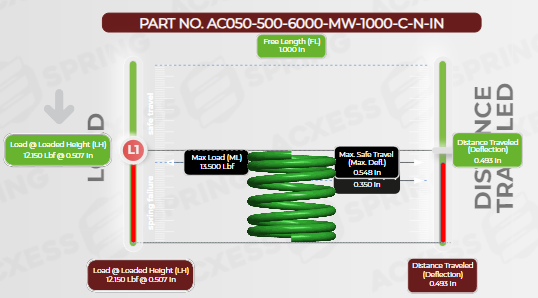

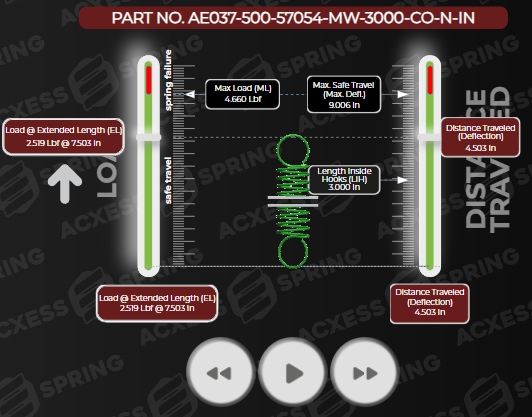

2. Online Spring Force Tester: This handy tool lets you test your spring’s load capacity and spring rate before you even build it. Just input your spring’s dimensions and material, and the tool will tell you if it will work  as intended. This tool is particularly useful during the design phase, allowing you to experiment with different materials and dimensions to achieve the desired performance. By testing your design virtually, you can avoid costly trial-and-error during production, ensuring that your final product meets all performance criteria. The Online Spring Force Tester provides real-time feedback, helping you fine-tune your design and stay within the desired tolerances.

Why Tolerances Matter to You

At the end of the day, tolerances aren’t just about meeting specs—they’re about making sure your springs do what they’re supposed to do, day in and day out. Tolerances ensure that every spring you use will fit perfectly, perform reliably, and last as long as expected. Whether you’re designing a new gadget or replacing a spring in an existing product, knowing the importance of tolerances can make all the difference.

By working with a partner like Acxess Spring and using our advanced tools and services, you can be sure your springs will meet the highest standards of quality and performance. We’re here to help you navigate the complexities of spring design and manufacturing, ensuring that your springs not only meet but exceed your expectations. With our expertise and commitment to precision, you can have confidence that your springs will perform flawlessly in any application. So, next time you think about that tiny spring inside your product, remember: it’s the tolerances that make it work just right.
